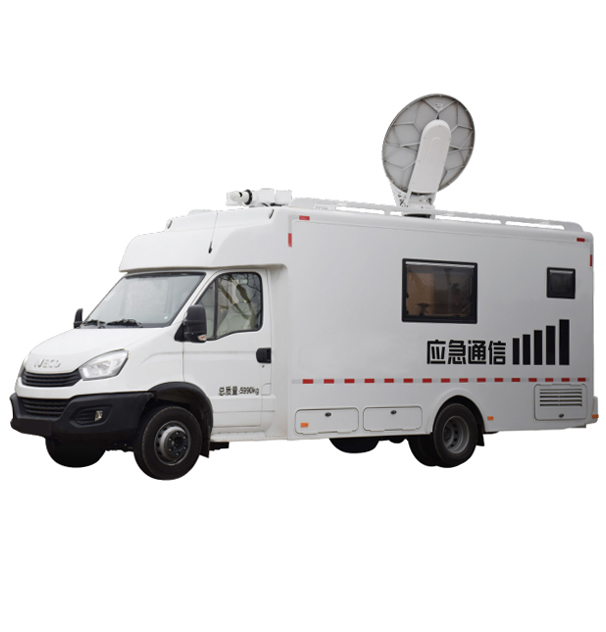

CW/V1200A type 1.2m Ku-band static-in-motion vehicular station
The CW/V1200A satellite communication vehicle is a medium-sized vehicle designed for rapidly establishing on-site command capabilities. It is equipped with a 1.2-meter-diameter satellite antenna, a high-speed satellite modem, and a comprehensive video conferencing system.
When an emergency occurs, the satellite communication vehicle can quickly arrive at the operation site, swiftly deploy the satellite antenna, automatically align with the satellite, and automatically access the network, establishing a stable and reliable satellite link with the rear. Utilizing the on-board small conference room and video conferencing system, the on-site commander can conveniently study and handle the emergency, and maintain contact with the rear at all times, exchanging information in a timely manner to ensure efficient and accurate handling.
分享
产品描述
| CW/V1200A type static-in-motion vehicular station | Common satellite communication vehicle |
| Designed for communication and command, easy to use | Only providing satellite communication function |
| High communication bandwidth, supporting the transmission of multiple high-definition videos | Inadequate communication capabilities, making it difficult to support multiple applications |
| Automatic satellite alignment, automatic network access, and swift activation | The operations for satellite and network access are cumbersome, and the activation process takes a long time |
| Independent intellectual property rights, strong customizability | Lack of core technology, making customization difficult |
Technical Specifications
| CW/V1200A type static-in-motion vehicular station | |
| Antenna aperture | 1.2 meters |
| Antenna type | Parabolic antenna |
| Polarization mode | Linear polarization |
| Time to satellite | ≤ 5 minutes |
| Pitch range | 0°～90° |
| Azimuth range | ±220° |
| Polarization range | ±270° |
| Operating frequency | Tx: 14.0GHz～14.5GHz; Rx: 12.25GHz～12.75GHz |
| Power amplifier power | 16W / 25W |
| Business type | Voice, video, data |
| Maximum speed | Not less than 10Mbps |
| Modulation method | QPSK, 8PSK |
| Encoding method | LDPC |
| Bit error rate | ≤10⁻⁶ |
| Threshold Eb/N0 | 2.5dB |
| Network mode | Bridge, Router |
| Data interface | RJ45, Wi-Fi |
| Security | AES data encryption, RSA key exchange |
| Operating temperature | -40°C to +60°C |
| Protection level | IP66 |
| External power supply | 220VAC |
